DS Series

Product TOP

Made to order
Measurement range: 10 mm, 25 mm, 50 mm, 100mm
Maximum resolution : 0.5 µm
Accuracy : 3 µm p-p to 5 µm p-p (Depending on the model)
Dust-proof, drip-proof and oil-resistant construction. Good environmental resistance (P type)
High measuring force (DS10/25/50/100P type) : 4.9 N to 9.3 N (depending on the model)
Low measuring force (DS10/25/50/100N type) : 0.3 N to 2.7 N (depending on the model)
Built in origin
Communication interface: USB 2.0 FS compatible

Specifications *Made to order
*1　Excluding cable and interpolation unit Magnescale reserves the right to change product specifications without prior notice.
		DS10NR5	DS10PR5	DS10PLR5	DS25NR5	DS25PR5	DS25NLR5	DS25PLR5
Communication interface		USB 2.0 FS
Maximum resolution		0.5 µm
Measuring range		10 mm			25 mm
Accuracy (at 20 °C)		3 µm p-p
Measuring force (at 20 °C)	Upward	0.3 ± 0.25 N	4.9 N or less		0.4 ± 0.3 N	4.9 N or less	0.4 ± 0.3 N	4.9 N or less
	Horizontal	0.6 ± 0.3 N			0.7 ± 0.35 N		0.7 ± 0.35 N
	Downward	0.8 ± 0.35 N			1 ± 0.4 N		1 ± 0.4 N
Reference point / Response speed		Position at the spindle movement of1 mm ±0.5 mm
Maximum response speed		250 m/min
Vibration resistance (10 to 2.000 Hz)		150 m/s²
Impact resistance		1500 m/s^{2 (11 ms)}
Protection grade		IP50	IP64		IP50	IP64	IP50	IP64
Operating temperature		0 to +50 ℃
Storage temperature		‒20 to +60 ℃
Power supply		DC +5 V ± 5%
Power consumption		1.2 W or less
Shaft diameter		Φ20 ⁰_‒0.013 mm
Mass *1		Approx. 230 g			Approx. 300 g
Feeler		DZ-122 :Carbide ball tip, Mounting screw M2.5
Output cable length		Gauge ⇔ Interpolation box : 2 m　Interpolation box ⇔ USB : 0.5 m
Accessories		Instruction manual
Recommended system specification		CPU : Intel Core i3 or higher RAM : 1 GB or higher OS : Windows7/Windows10 Windows7, Windows10 (32 bit/64 bit)

Specifications
*1　Excluding cable and interpolation unit Magnescale reserves the right to change product specifications without prior notice.
		DS50NR5	DS50PR5	DS100NR5	DS100PR5
Communication interface		USB 2.0 FS
Maximum resolution		0.5 µm
Measuring range		50 mm		100 mm
Accuracy (at 20 °C)		4 µm p-p		5 µm p-p
Measuring force (at 20 °C)	Upward	－	6.2 N or less	－	9.3 N or less
	Horizontal	0.9 ± 0.4 N		1.8 ± 0.65 N
	Downward	1.3 ± 0.5 N		2.7 ± 0.55 N
Reference point		Position at the spindle movement of 1 mm ±0.5 mm
Maximum response speed		250 m/min
Vibration resistance (10 to 2.000 Hz)		150 m/s²
Impact resistance (11 ms)		1500 m/s²
Protection grade		IP50	IP64	IP50	IP64
Operating temperature		0 to +50 ℃
Storage temperature		‒20 to +60 ℃
Power supply		DC +5 V ± 5%
Power consumptioni		1.2 W or less
Shaft diameter		Φ20 ⁰_‒0.013 mm
Mass *1		Approx. 360 g		Approx. 630 g
Feeler		DZ-122 : Carbide ball tip, Mounting screw M2.5
Kabellänge		Gauge ⇔ Interpolation box : 2 m　Interpolation box ⇔ USB : 0.5 m
Accessaries		Instruction manual
Recommended system requirement		CPU : Intel Core i3 or higher RAM : 1 GB or higher OS : Windows7, Windows10 (32 bit/64 bit)

Produktname		2D	3D
DS serie		–	–

Product name	Japanese	English
DS10/DS25	Download	Download
DS50/DS100	Download	Download

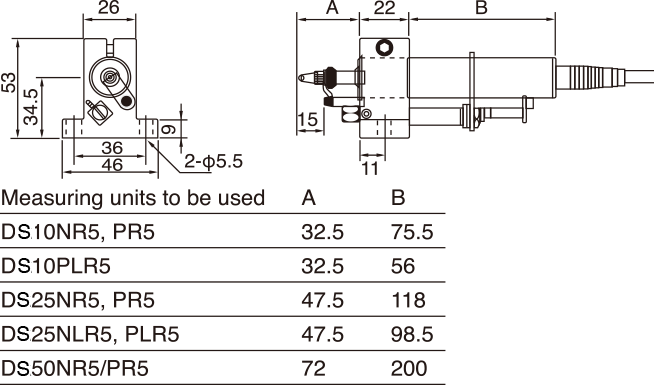

DS10/25/50/100

Feeler

DZ-100		Roller feeler
DZ-121		Φ2.5 mm carbide ball tip feelerfor DS100
DZ-122		Φ2.5 mm carbide ball tip feeler for DS10/25/50
DZ-123		Φ3 mm carbide ball tip feeler for DS10/25/50/100
DZ-191		Coupling feeler
DZ-5100		Feeler set (pin, off-center, carbide flat, plastic spherical) for DS10/25/50/100
