Two new technologies for high-speed, high-precision measurement

• AL Link mechanism

  Newly developed mechanism that converts circular arc motion into linear motion. This eliminates the backlash that commonly appears with conventional lever-type gauges, and reduces the return error.

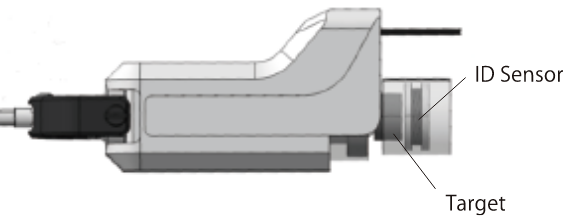

• ID Sensor

  A sensor that measures inductance is used for position detection. The changing frequency is detected as the amount of movement. The simple structure design and absolute readings allows the position of the stylus tip to be visualized on the display, making it easy to confirm end of travel.
