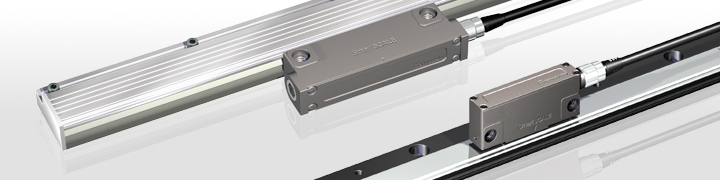

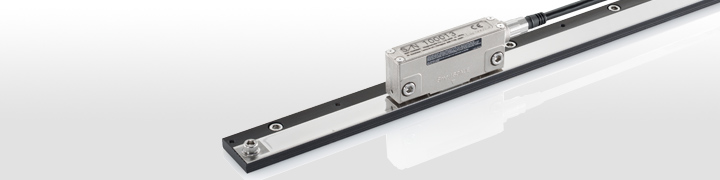

SQ47/57SmartSCALE

Features

• Wide gap and clearance tolerance
• Individual non-contact component design
• 5nm high-resolution
• Sealed structure with IP67 protection grade
• Protocol : FANUC, Mitsubishi, YASKAWA, SIEMENS AG

Specifications

Specifications
Magnescale reserves the right to change product specifications without prior notice.
Model name	SQ47	SQ57
Effective length	90 ～ 6,240mm	70 ～ 6,270mm
Accuracy	±(1.5+1.5L/1000）μm
Resolution	Selectable from 0.005/0.01/0.05/0.1/0.5/1 μm
Maximum response speed	200m/min (with serial communication)
Vibration resistance	250ｍ/s2 (50Hz to 2,000Hz)
Impact resistance	980ｍ/s2 (11ms)
Degree of protection	IP67
Maximum power consumption	1.3W
Power supply voltage	DC5V±5%
Operating temperature	0 to 50℃
Protocol	FANUC, Mitsubishi, YASKAWA, SIEMENS AG
Option	Connection cable: CH23 series

Dimensions

*Please contact our sales department.

Contact

Installation（Video）

Product name	Japanese	English	Deutsch
SQ47	Download	Download	Download
SQ57	Download	Download	Download
SQ47/57 (Precautions for installation)	Download	Download	Download

Installation instructions

Product name	Japanese	English	Deutsch
SQ47	Download	Download	Download
SQ57	Download	Download	Download

*Please contact us if you cannot download the file.
