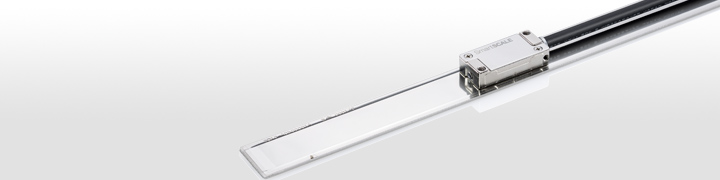

SQ10/PQ10/MQ10/PQ11SmartSCALE

Features

• Individual non-contact component design
• Space-saving compact head design
• IP65 protection grade against liquid and solid contaminates
• Signal LED display for ease of installation

Specifications

Specifications
Magnescale reserves the right to change product specifications without prior notice.
Model name	SQ10 scale unit	PQ10 head unit	MQ10 interpolator unit
		PQ11 head with interpolator
Effective length	100 ～ 1,000mm
Accuracy (at 20℃)	±5μm
Resolution	0.05/0.1/0.5/1μm/0.048828μm (Only Yaskawa Electric Serial interface)
Maximum response speed	Serial interface 3m/s A/B phase output [m/min] Minimum phase difference(ns) 50 100 150 200 250 300 400 500 650 1,000 1,250 2,500 3,000 Resolution (μm) 0.05 36 18 12 9 7 6 4.5 3.6 2.7 1.6 1.3 0.6 0.4 0.1 72 36 24 18 14 12 9 7 6 3.6 2.8 1.4 0.9 0.5 180 180 150 114 90 72 54 42 3 19 15 7 6 1.0 180 180 180 180 180 156 120 96 72 48 36 18 12
Operating temperature	0 to 50℃
Vibration resistance	196m/s2 (50Hz to 2,000Hz)（Head only）
Impact resistance	980m/s2 (11ms)（Head and Scale）
Degree of protection	IP67	IP65/IP60	IP60
Power supply voltage range	-	DC5V±5%
Maximum power consumption	-	250mA
Mass	(Effective length:mm×0.22)+8g	8g (excludes cable)	120g (excludes cable)
Output signal	Various serial interface or A/B phase output
