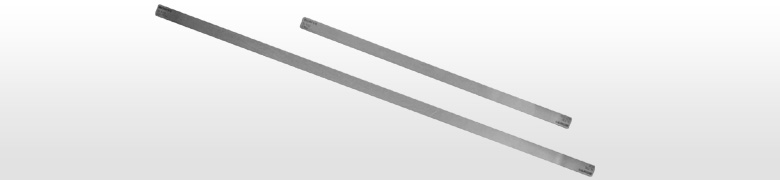

SL700Magnescale
- Features
- Specifications
- Dimensions
- Manual
- Catalog
Features
Scale unit
- Compact ribbon type scale for easy mounting in cramped spaces
- Non-contact detection
- Magnetic detection system with excellent resistance to dust, oil, vibrations and shocks.
- Effective length from 50 mm to 100,000 mm
- Detects linear displacement and produces analog or AB quadrature signal output when connected to PL101 head and MJ500/600/620 Series interpolator (both sold separately).
- Three types are available with different reference point specifications.
Specifications
| Specifications | ||||
|---|---|---|---|---|
|
*1 when used with PL101. Magnescale reserves the right to change product specifications without prior notice. | ||||
| Model | SL700 | SL710 | SL720 | SL730 |
| Measuring length(L) | 50～100,000mm | 100～100,000mm | 200～100,000mm | |
| Reference point | None | One point (Specify the position when ordering) (1 mm unit) | Multi point 60mm pitch from left effective length end | Reference mark |
| Overall length | L+40mm | |||
| Accuracy(20℃)*1 | ±10Lμm (L≦3,000mm), ±(10L+2.5N)μm( L>3,000mm) | |||
| Reproduced wave length | 800μm | |||
| Mass | 15g/m | |||
| Thermal expansion coefficient | (14±1)×10-6/℃(Scale unit) | |||
| Operating temperature | 0℃～+45℃ | |||
| Storage temperature | -10℃～+50℃ | |||
Manual
| Product name | Japanese | English | Deutsch | Simplified Chinese | Traditional Chinese |
|---|---|---|---|---|---|
| SL700 | Download | Download | Download |
*Please contact us if you cannot download the file.
Catalog
| SL700 Series | Japanese |  |
|---|---|---|
| SL700 Series | English | |
*Please contact us if you cannot download the file.
