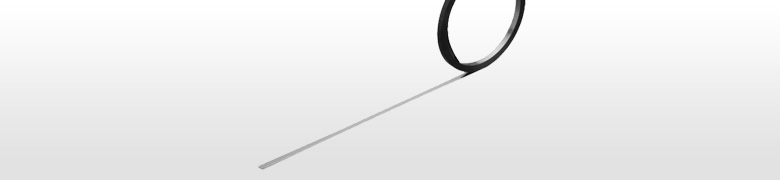

SL331Magnescale

Features

Non-contact, detection and a high response speed

• Magnetic principle
• Excellent resistance to workshop conditions (IP65). Resistant to oil, dirt, vibrations and shocks.
• Accuracy: (15 + 5L/ 1000) μm (L=measuring length in mm).
• Maximum Resolution: SL331 with PL60 5 μm,10 μm
• High response speed: 250 m/min with a resolution of 5 μm
• Measuring lengths of up to 8 m / 314.9"
• Easy installation
• Automatic position control for layout machines and other dedicated machines

Specifications

Specifications
Magnescale reserves the right to change product specifications without prior notice.
Model	SL331
Measuring length（L）	200, 300, 400, 500, 600, 700, 800, 1000, 1200, 1500, 1600, 1700, 1800, 2000, 2500, 3000, 4000, 5000, 6000, 7000, 8000 mm
Overall length	L+100mm
Accuracy（20℃）	30+10L/1000μmp-p L:Measuring length
Maximum resolution	5μm/10μm(when used with PL60.)
Maximum response speed	Varies with the resolution
Thermal expansion coefficient	(10.4±1)×10-6/℃
Operating temperature	-5℃～+45℃
Storage temperature	-10℃～+50℃
Compatible read head	PL60

Dimensions

*Please contact our sales department.

Contact

Manual

Please refer to the instruction manual for PL60.

*Please contact us if you cannot download the file.
