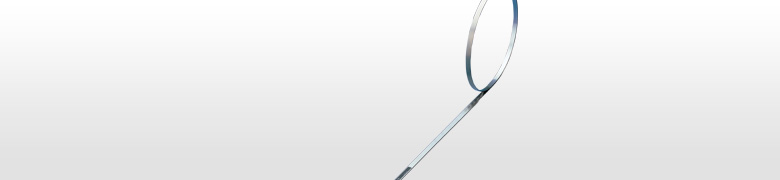

SL130 Magnescale
  • Features
  • Specifications
  • Dimensions
  • Manual
  • Catalog


Non-contact detection and a long measuring range

  • Magnetic principle
  • Excellent resistance to workshop conditions (PL20C equivalent to IP65). Resistant to oil, dirt, vibration, and shock.
  • Resolution: 10 μm
  • Maxresponse speed: 300 m/ min (varies with the read head and settings).
  • Available in lengths up to 30 m (SL130)
  • High cost efficiencyEasy installation on all types of machines from wood working to metal cutting.



*1 Accuracy shows the value when used with PL20B/25 read head and PL81/82.

Magnescale reserves the right to change product specifications without prior notice.

Measuring length(L)200, 300, 400, 500, 600, 700, 800, 1000, 1200, 1500, 1600, 1700, 1800, 2000, 2500, 3000, 4000, 5000, 6000, 7000 mm8000, 9000, 10000, 20000, 30000 mm
Overall lengthMeasuring length+103mm
Accuracy(20℃)*1(50+10L/1000)μm L:Measuring length(mm)
  • (50+10L/1000+20N)μm L:Measuring length(mm)
    • N=
    • 1→Measuring length8000/9000/10000
    • 2→Measuring length20000
    • 3→Measuring length30000
Mounting parallelismHead clearance(top)0.8mmor less/Overall length
Head clearance(side)1.0mmor less/Overall length
Thermal expansion coefficient(10.4±1)×10-6/℃
Operating temperature-5℃~+45℃
Storage temperature-10℃~+50℃
Compatible read headPL20C/PL25
Compatible read head and InterpolatorPL81/82


Product nameCommonJapaneseEnglish
SL130- Download

*Please contact our sales department.



Please refer to the instruction manual for PL20C or PL25.

*Please contact us if you cannot download the file.



SL130 SeriesJapaneseSL130 Catalog Japanese PDF
SL130 SeriesEnglishSL130 Catalog English PDF
