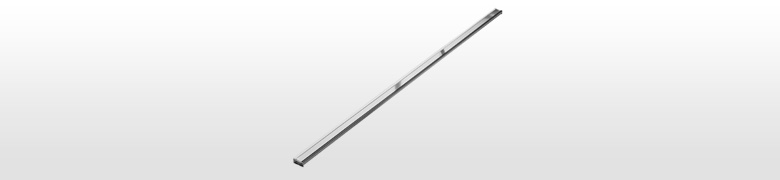

SL110Magnescale
- Features
- Specifications
- Dimensions
- Manual
- Catalog
Features
Non-contact detection and a long measuring range
- Magnetic principle
- Excellent resistance to workshop conditions (PL20C equivalent to IP65). Resistant to oil, dirt, vibration, and shock.
- Maximum resolution: 10 μm
- Maximum response speed: 300 m/ min (varies with the read head and settings).
- High cost efficiency, easy installation on all types of machines from wood working to metal cutting.
Specifications
| Specifications | ||
|---|---|---|
|
*1 Accuracy shows the value when used with PL20C/25 read head and PL81/82. Magnescale reserves the right to change product specifications without prior notice. | ||
| Model | SL110 | |
| Measuring length(L) | 200, 300, 400, 500, 600, 700, 800, 1000, 1200, 1500, 1600, 1700, 1800, 2000mm | |
| Overall length | Measuring length+103mm | |
| Accuracy(20℃)*1 | (50+10L/1000)μm L:Measuring length(mm) | |
| Mounting parallelism | Head clearance(top) | 0.8mm or less/Overall length |
| Head clearance(side) | 1.0mm or less/Overall length | |
| Thermal expansion coefficient | (10.4±1)×10-6/℃ | |
| Operating temperature | -5℃～+45℃ | |
| Storage temperature | -10℃～+50℃ | |
| Compatible read head | PL20C/PL25 | |
| Compatible read head and Interpolator | PL81/82 | |
