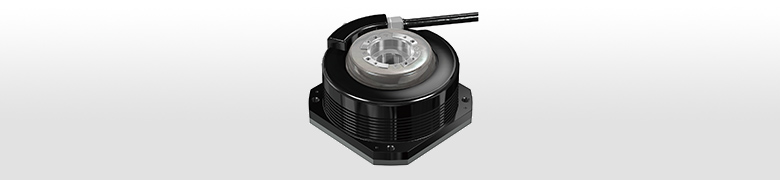

RU97Magnescale

Enables direct communication using the SIEMENS DRIVE-CLiQ protocol without the requirement of an amplifier
Magnetic system enables use even in environments with condensation, oil, and other adverse conditions
Internal coupling allows for design and mounting flexibility

Specifications
Magnescale reserves the right to change product specifications without prior notice.
Model name	RU97-2048AJZ RU97-2048BJZ
Output wave number	2,048 waves/revolution
Through hole diameter	A：Φ20 mm、B：Φ22 mm
Accuracy(at 20℃)	±2.5"
Output signal	Compliant with DRIVE-CLiQ, single turn absolute type
Compatible controllers	SIEMENS AG
Resolution	25 bits (33,554,432 pulses/revolution)
Maximum response revolutions	2,000 min^-1
Maximum mechanical revolutions	3,000 min^-1
Functional safety	EN ISO13849-1:2008 Cat.3 EN 62061:2005 / IEC 61508:2010 / EN61800-5-2:2007
Legal compliance	FCC Part15 Subpart B Class A ICES-003 Class A Digital Device EN55011 Gp1 Class A, EN61000-6-2
Operating temperature range	0 to +60℃
Storage temperature range	-10 to +60℃
Vibration resistance	150 m/s²(50 Hz to 2 kHz)
Impact resistance	1,000 m/s² (11 ms)
Protective design grade	IP65
Power supply voltage range	DC+17 to +30.8 V
Maximum consumption current	1.6 W or less (17 V or 30.8 V)
Consumption current	65 mA (24 V) (when the controller is connected)
Moment of inertia	9.4×10^-5 kgm² or less
Mass	Approx. 1.2kg or less
Compatible cables (types without relay connectors) Maximum cable length	CH22-***NSFY 30 ｍ
Compatible cables (types with relay connectors) Maximum cable length	CH22-*NSFF + CH22-*NSFY 30 ｍ
