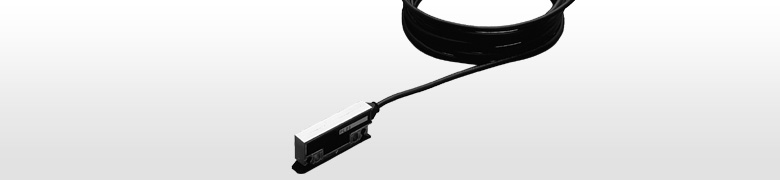

PL60Magnescale
- Features
- Specifications
- Dimensions
- Manual
- Catalog
Features
- Magnetic principle
- Read head resistant to external magnetic field.
- Maximum resolution: SL331 with PL60 5 μm,10 μm
- High response speed: 250 m/min with a resolution of 5 μm
Specifications
| Specifications | ||
|---|---|---|
|
※Cable length of more than 15m, please consalt our sales. Magnescale reserves the right to change product specifications without prior notice. | ||
| Model | PL60 | |
| Head clearance | 0.8mm maximum | |
| Protective design grade | Equivalent to IP65 | |
| Operating temperature | -5℃～+45℃ | |
| Storage temperature | -10℃～+50℃ | |
| Read head cable length | 3m | |
| Compatible scale | SL331 | |
| Compatible interpolator | MJ100/110 | |
| Extension cable(Option) | CE08-01:1m, CE08-03:3m, CE08-05:5m, CE08-10:10m, CE08-15:15m | |
Manual
| Product name | Japanese | English | Deutsch | Simplified Chinese | Traditional Chinese |
|---|---|---|---|---|---|
| PL60 | Download | Download | Download |
*Please contact us if you cannot download the file.
Catalog
| PL60 Series | Japanese |  |
|---|---|---|
| PL60 Series | English | |
*Please contact us if you cannot download the file.
