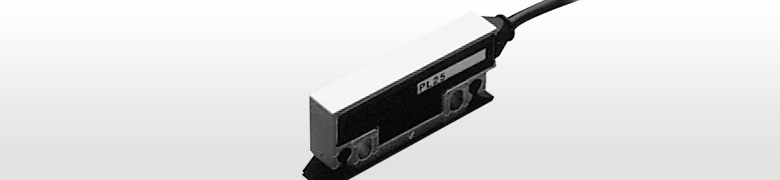

PL25Magnescale
- Features
- Specifications
- Dimensions
- Manual
- Catalog
Features
Head cable unit
- Output signal: AB quadrature signal, compilant with EIA-422
- Maximum resolution: 10 μm
- Maximum response speed: 300 m/min (varies with the read head and settings).
- Excellent resistance to workshop conditions (IP65).
- Resistant to oil, dirt, vibration, and shock.
Specifications
| Specifications | ||
|---|---|---|
|
Magnescale reserves the right to change product specifications without prior notice. | ||
| Head cable length | 3m | |
| Interpolator | MJ100/110 | |
| Extension cable | CEseries | |
| Head mtg. screw tightening torque | 0.7～1.1N・m | |
| Operating temperature | 0～+45℃ | |
| Storage temperature | -10～+50℃ | |
Manual
| Product name | Japanese | English | Deutsch | Simplified Chinese | Traditional Chinese |
|---|---|---|---|---|---|
| PL25 | Download | Download | Download |
*Please contact us if you cannot download the file.
Catalog
| PL25 Series | Japanese |  |
|---|---|---|
| PL25 Series | English | |
*Please contact us if you cannot download the file.
