PL20CMagnescale
- Features
- Specifications
- Dimensions
- Manual
- Catalog
Features

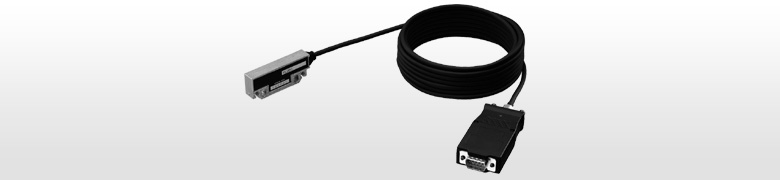

Head cable unit
- Output signal: AB quadrature signal, compilant with EIA-422
- Maximum resolution: 10 μm
- Maxresponse speed: 300 m/min (varies with the read head and settings).
- Excellent resistance to workshop conditions (IP65).
- Resistant to oil, dirt, vibration, and shock.
Specifications
| Specifications | ||||||
|---|---|---|---|---|---|---|
|
Magnescale reserves the right to change product specifications without prior notice. | ||||||
| Model | PL20C | |||||
| PL20C-3/-3C | PL20C-5/-5C | PL20C-10/-10C | PL20C-15/-15C | PL20C-20/-20C | PL20C-30 | |
| Head cable length | 3m | 5m | 10m | 15m | 20m | 30m |
| Output signal | A/B quadrature signal(Conforms to EIA-422) | |||||
| Maximum resolution | 10μm | |||||
| Maximum response speed | 300m/min | |||||
| Head mtg. screw tightening torque | 0.7～1.1N・m | |||||
| Operating temperature | 0～+45℃ | |||||
| Storage temperature | -10～+50℃ | |||||
Manual
| Product name | Japanese | English | Deutsch | Simplified Chinese | Traditional Chinese |
|---|---|---|---|---|---|
| PL20C | Download | Download | Download | Download |
*Please contact us if you cannot download the file.
Catalog
| PL20C Series | Japanese |  |
|---|---|---|
| PL20C Series | English | |
*Please contact us if you cannot download the file.
