PL101-RM/RP/RYMagnescale

PL101-RM/RP/RY Magnescale
  • Features
  • Specifications
  • Dimensions
  • Manual
  • Catalog

Features

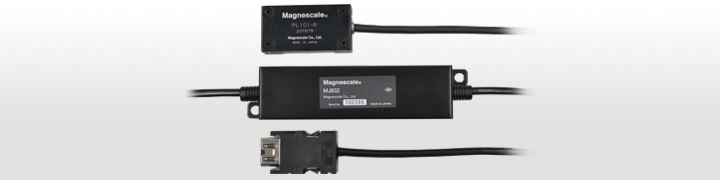

Combines a PL101 (reader head unit for SL700) and serial protocol interpolator

  • Detects linear position and displacement when combined with the SL700 series. Produces serial communications compatible with Mitsubishi Electric, Yaskawa Electric or Panasonic.
  • Non-contact detection between head and scale
  • Magnetic detection system for excellent resistance to dust, oil, vibration and shock
  • A wide range of models are available so you can select the best model for your specific application

Specifications

主な仕様

*1 Refer to Dimensions.

Magnescale reserves the right to change product specifications without prior notice.

Model namePL101-RMPL101-RHMPL101-RYPL101-RHYPL101-RPPL101-RHP
Head unitPL101-RPL101-RHPL101-RPL101-RHPL101-RPL101-RH
Protection
grade
IP50
or
equivalent
IP67
or
equivalent
(not
including
connector)
IP50
or
equivalent
IP67
or
equivalent
(not
including
connector)
IP50
or
equivalent
IP67
or
equivalent
(not
including
connector)
Reference
point
Available
Resolution
(number
of
divisions)
0.1μm
(1/8000)
1/8192 0.1μm
(1/8000)
Accuracy
(20℃)
±10L μm *L≦3000 mm ; ±(10L +2.5N) μm *L≦3000 mm
*L: Effective length, N: Integer according to length
Refer to specification of SL700 about L and N.
Clearance*10.35±0.1mm
Offset±0.2mm
Change
in
attitude
Pitch*1±0.1°
Yaw*1±0.2°
Roll*1±0.2°
Commnication
protocol
Mitsubishi Electric Yaskawa Electric Panasonic
Output sginal1 Vp-p analog output differential output
Power supply voltageDC 5V±5%
Power consumptionMax.1.0w
Maximum response speed10 m/s
Head cable length300mm3000mm
Mass60 g150g
Operating temperature0℃ to +45℃
Storage temperature-20℃ to +50℃
Extension cable
between head
and interpolator
(Option)
CK-T12:1m CK-T13:3m CK-T14:5m CK-T15:10m
Extension cable
between
interpolator
and servo
amplifier
(Option)
CE33-1: 1m
CE33-3: 3m
CE33-5: 5m
CE33-10: 10m
CE33-15: 15m
CE33-20: 20m
CE32-1: 1m
CE32-3: 3m
CE32-5: 5m
CE32-10: 10m
CE32-15: 15m
CE32-20: 20m

Dimensions

Product nameCommon2D3D
PL101-RM / RHM Download Download Download
PL101-RY / RHY Download Download Download
PL101-RP / RHP Download Download Download
