PL101-RAMagnescale

PL101-RA Magnescale
  • Features
  • Specifications
  • Dimensions
  • Manual
  • Catalog

Features

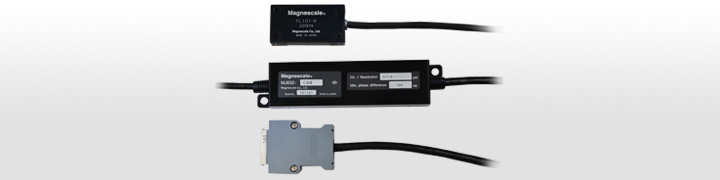

Combines a PL101 (reader head unit for SL700) and MJ632 (A/B quadrature output interpolator)

  • Detects linear position when combined with the SL700 series, and produces an A/B quadrature signal
  • Non-contact detection between head and scale
  • Magnetic detection system for excellent resistance to dust, oil, vibration and shock
  • A wide range of models are available so you can select the best model for your specific application

Specifications

Specifications

*1 Refer to Dimensions

*2 Refer to MJ632 manual

Magnescale reserves the right to change product specifications without prior notice.

Head unitPL101-RAPL101-RHA
InterpolatorMJ632-***
Protection gradeIP50 or equivalentIP67 or equivalent (not including connector)
Reference pointAvailable
Resolution0.2 to 10μm (Selectable upon ordering*2)
Accuracy (20℃) ±10L μm *L≦3000 mm ; ±(10L +2.5N) μm *L≦3000 mm
*L: Effective length, N: Integer according to length
Refer to specification of SL700 about L and N.
Clearance*10.35±0.1mm
Offset±0.2mm
Change in attitudePitch*1±0.1°
Yaw*1±0.2°
Roll*1±0.2°
Output sginalA/B quadrature, Reference point signal, Alarm
Power supply voltageDC 5V±5%
Power consumptionMax.1.0w
Maximum response speedVaries according to the combination of
resolution and minimum phase difference*2
Head cable length300mm3000mm
Mass60 g150g
Operating temperature0℃ to +45℃
Storage temperature -20℃ to +50℃
Extension cable (Option)CK-T12:1m CK-T13:3m CK-T14:5m CK-T15:10m

Dimensions

Product nameCommon2D3D
PL101-Download Download Download
MJ632-DownloadDownloadDownload

*Please contact our sales department.

Contact

Manual

Product nameJapaneseEnglishDeutschSimplified ChineseTraditional Chinese
PL101 Download Download Download
MJ632 Download Download Download

*Please contact us if you cannot download the file.

Contact

Catalog

PL101-RAJapanesePL101 Catalog Japanese PDF
PL101-RAEnglishPL101 Catalog English PDF

*Please contact us if you cannot download the file.
