MT seriesDigital Gauge
- Features
- Specifications
- Dimensions
- Manual
- Catalog
Features

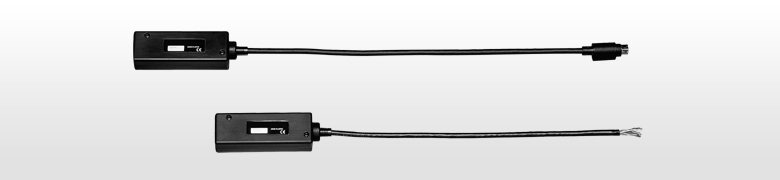

Interpolators for DT12 / 32 Series
- MT12/13: For connection to counter
- MT14: Unterminated cable A/B-quadrature output by line driver [EIA-422 compliance]
- Power supply + 5 V DC
Specifications
| Specifications | ||||||||
|---|---|---|---|---|---|---|---|---|
|
Magnescale reserves the right to change product specifications without prior notice. | ||||||||
| Model | MT12-05 | MT12-10 | MT13-01 | MT13-05 | MT13-10 | MT14-01 | MT14-05 | MT14-10 |
| Compatible measuring unit | DT512, DT12/DT32 | |||||||
| Maximum response speed | 100 m/min | |||||||
| Maximum resolution | 5μm | 10μm | 1μm | 5μm | 10μm | 1μm | 5μm | 10μm |
| Power supply Power supply voltage | DC5 V ±4 % | |||||||
| Power consumption | 0.9 W | 1.2 W (when output load of 120Ω is connected) | ||||||
| Output format | NPN open collector | Voltage differential line driver | ||||||
| Operating temperature/humidity | 0 to +50 °C (non condensing) | |||||||
| Storage temperature/humidity | -10 to + 60℃ (20 to 90 %RH) | |||||||
| Mass | Approx. 90g | |||||||
Manual
| Product name | Japanese | English | Deutsch | Simplified Chinese | Traditional Chinese |
|---|---|---|---|---|---|
| MTseries | Download | Download | Download |
*Please contact us if you cannot download the file.
Catalog
| MT series | Japanese |  |
|---|---|---|
| MT series | English | |
*Please contact us if you cannot download the file.
