MG80-NE/EI/PN/MG80-CMDigital Gauge

MG80-NE/EI/PN/MG80-CM Digital Gauge
  • Features
  • Specifications
  • Dimensions
  • Manual
  • Operating manual
  • Catalog
  • Software

Features

Interface unit for DK800S, DK and DT series. Output data from Digital Gauges can be calculated and controlled by a PLC via an Ethernet/EtherNet/IP/PROFINET fieldbus connection.

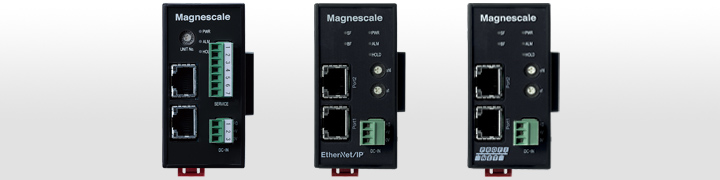

MG80-NE(Ethernet) / MG80-EI (EtherNet/IP) / MG80-PN (PROFINET)

  • Fieldbus-compatible interface unit.
  • MG80-NE can connect up to 64 gauges by linked connection. MG80-EI and MG80-PN can connect up to 16 gauges on one unit, and link up to 255 gauges via fieldbus IP address configuration.

MG80-CM

  • Counter module for DK800S, DK and DT series (via MT) digital gauges.
  • DIN rail mount for easy installation

LZ80-K1/K2

  • I/O module for MG80-EI and MG80-PN.
  • Equipped with 8 inputs and 8 outputs

Specifications

Main module
Model name MG80-NEMG80-EIMG80-PN
Commnication protocolEthernet (TCP/TP) 100BASE-TXEtherNet/IPPROFINET
FunctionResolution selection (0.1 to 10 µm), reference point setting, reset, preset, master preset, current value / maximum value / minimum value / P-P value output of each axis, calculation function (2-axis addition and subtraction), comparator function (Up to 8 sets of 2 or 4 steps can be set)
Transmission speed100 Mbit/s
Maximum connectable counter modulesUp to 16 MG80-CM can be connected to each MG80-NE. This enables an overallconfiguration of up to 64 modules by linked connection. Up to 16 MG80-CM can be connected to each MG80-EI/PN. Link up to 255 units via fieldbus IPaddress configuration.
Mounting method35mm DIN rail mounting
Power supply voltage DC 10.8 to 26.4 V
Power supply voltage 2.4 W or less
Maximum cable length*20m (shielded CAT5e recommended)

*The customer must provide the communication cables.

Counter module
ModelMG80-CM
Power consumption2.0W or less (Measuring unit excluded)
Compatible measuring unitsDK series, DT series (via MT)
AlarmFrequency response exceeded, Measuring unit not connected, Cable breakage
I/O module*
ModelLZ80-K1/LZ80-K2
Power consumption2.0W or less
I/O9-pole connector × 2 Photo coupler insulated 8 input, 8 output
LZ80-K1: Current Sink
LZ80-K2: Current Source

*Cannot connect to MG80-NE

Magnescale reserves the right to change product specifications without prior notice.

Dimensions

*Please contact our sales department.

Contact

Manual

Product nameJapaneseEnglishDeutschSimplified ChineseTraditional Chinese
MG80-NE Download Download
MG80-EI Download Download
MG80-PN Download Download
MG80-CM Download Download
MG80-LM Download Download
LZ80-K1 / LZ80-K2 Download Download

*Please contact us if you cannot find out the file.

Contact

Operating manual

Product nameJapaneseEnglishRemarks
MG80-NE Download Download
MG80-EI Download Download
MG80-PN Download Download

*Please contact us if you cannot find out the file.

Contact

Catalog

MG80-NE/EI/PN SeriesJapaneseMG70 Catalog Japanese PDF
MG80-NE/EI/PN SeriesEnglishMG70 Catalog English PDF

*Please contact us if you cannot download the file.

Contact

Software

Product name Setting file*1 Setting application for Windows PC*2
MG80-EI(EtherNet/IP) Download Download
MG80-PN(PROFINET) Download

*Please contact us if you cannot download the file.

*1 EDS file (EtherNet/IP) / GSDML file (PROFINET)

*2 Software that enables various parameters and settings by PC
