MG70/71Digital Gauge
- Features
- Specifications
- Dimensions
- Manual
- Catalog
- Software
Features

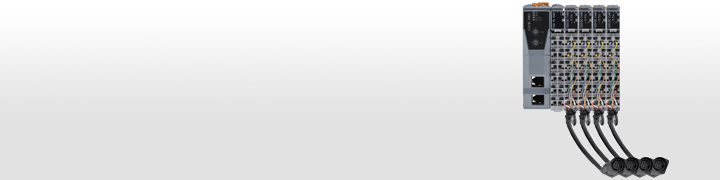

PLC fieldbus interface system for DK series and DT series gauges. Data from DK or DT series can be transferred to PLC via EtherNet/IP or PROFINET (DT series can be connected via MT13 interpolator)
- MG70-EI (EtherNet/IP) / MG70-PN (PROFINET)
- Fieldbus compatible main module. Maximum of 85 gauges can be connected to MG70-EI or MG70-PN via MG71-CM modules.
- MG71-CM
- Counter module for DK or DT series gauges (compatible only with MG70 series).
Specifications
| MG70 series Specifications | ||||
|---|---|---|---|---|
|
*This is the maximum number of connections when using one power supply module. A maximum of 250 MG71-CM modules can be connected by adding power supply modules. Please contact us when connecting more than 85 MG71-CM modules. Magnescale reserves the right to change product specifications without prior notice. | ||||
| Model name | Main module | Counter module | ||
| MG70-EI | MG70-PN | MG71-CM | ||
| Communication protocol | EtherNet/IP | PROFINET RT | Data transferred to main module by dedicated protocol | |
| Data transfer speed | 10/100Mbps | 100Mbps | - | |
| Maximum connectable counter modules | 85 units* | - | ||
| Maximum connectable gauges | - | 1 unit | ||
| Mounting method | 35mm DIN rail mounting | |||
| Power supply voltage | 24V DC (20.4-28.8V DC) | |||
| Power consumption | 2W or less | 2.5W or less | 1.01W or less | |
| Cable length (Communication distance) | Segment length：Max.100m between two stations | - | ||
Manual
| Product name | Japanese | English | Deutsch | Simplified Chinese | Traditional Chinese |
|---|---|---|---|---|---|
| MG70-PN | Download | Download | |||
| MG70-EI | Download | Download |
Supplement
| Product name | Japanese | English | Deutsch | Simplified Chinese | Traditional Chinese |
|---|---|---|---|---|---|
| MG70-PN | Download | Download | |||
| MG70-EI | Download | Download | |||
| MG71-CM | Download | Download |
*Please contact us if you cannot download the file.
Catalog
| MG70 Series | Japanese |  |
|---|---|---|
| MG70 Series | English | |
| MG70 Series | Deutsch | |
*Please contact us if you cannot download the file.
Software
| Product name | Configuration files | |
|---|---|---|
| Number of connected MG71-CM modules | English | |
| MG70-EI | 1 | Download |
| 2 | Download | |
| 3 | Download | |
| 4 | Download | |
| 5 | Download | |
| 6 | Download | |
| 7 | Download | |
| 8 | Download | |
| 9 | Download | |
| 10 | Download | |
| 11 | Download | |
| 12 | Download | |
| 13 | Download | |
| 14 | Download | |
| 15 | Download | |
| 16 | Download | |
| 17 | Download | |
| 18 | Download | |
| 19 | Download | |
| 20 | Download | |
| 21 | Download | |
| 22 | Download | |
| 23 | Download | |
| 24 | Download | |
| 25 | Download | |
| 26 | Download | |
| 27 | Download | |
| 28 | Download | |
| 29 | Download | |
| 30 | Download | |
| 31 | Download | |
| 32 | Download | |
| MG70-PN | Set in a development environment | Download*1 |
*Please contact us if you cannot download the file.
*1 Please download the configuration file (GSDML file) from B&R Automation website. Please refer to the instruction manual for details.
