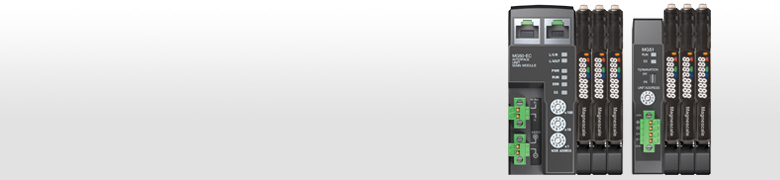

MG50/51/MF10-CMDigital Gauge
- Features
- Specifications
- Dimensions
- Manual
- Catalog
- Software
Features
Interface unit for Tough Sensor series. Output data from DF805/812 series can be calculated and controlled by PLC via EtherCAT/CC-Link fieldbus. DT series(general purpose type) can be connected by using MT20 series interpolator.
- MG50-EC (EtherCAT) / MG50-CL (CC-Link)
- Fieldbus compatible main module interface unit. Maximum of 30 gauges can be connected to MG50-EC (maximum of 16 gauges for MG50-CL).
- MG51
- Distribution module for MG50. When installing digital gauges over a long distance, extension cables aren't required when using a MG51. Ten gauges can be connected per unit. Maximum cable length is 30m.
- MF10-CM
- Counter module for DF805S/812S series. MF10-CM is compatible with the MG50/51 series.
Specifications
| MG50 series Specifications | ||||
|---|---|---|---|---|
|
Magnescale reserves the right to change product specifications without prior notice. | ||||
| Model name | Main module | Distribution module | ||
| MG50-EC | MG50-CL | MG51 | ||
| Commnication protocol | EtherCAT | CC-Link | Data transferred to main module by dedicated protocol | |
| Baud rate | 100Mbps | Maximum downlink speed of 10 Mbps | - | |
| Node address setting method | Set with decimal rotary switches or software | Set with decimal rotary switches | - | |
| Node address range | 000-192 | Max. 64 | - | |
| Maximum connectable counter modules | 30 | 16 | 10 | |
| Maximum connectable distribution modules | 8 | - | ||
| Maximum cable length | Maximum cable length between main module and distribution module: 30m | |||
| Mounting method | 35mm DIN rail mounting | |||
| Power supply voltage | DC24V(20.4-26.4V) | |||
| Power consumption / Consumption current / Current consumption | 2.4 W or less 100 mA or less | 2W or less 80 mA or less | ||
| MF10 series Specifications | ||||
|---|---|---|---|---|
|
Magnescale reserves the right to change product specifications without prior notice. | ||||
| Model name | Digital tolerance indicator | Counter module | ||
| MF10-P1 | MF10-P2 | MF10-CM | ||
| Function | NPN output (current sink) | PNP output (current source) | Counter module for MG50 | |
| I/O | Number of Go/No Go judgement output 2, Number of external inputs 1 | - | ||
| Minimum display unit | 0.1μm | |||
| Cable length | input/output, power cable 2m | - | ||
| Mounting method | 35mm DIN rail mounting | |||
| Power supply voltage | +10-30V DC including ripple (p-p) 10% | |||
| Power consumption / Consumption current | 2.1W or less / 85A or less | |||
| Mass | 75g | |||
Manual
| Product name | Japanese | English | Deutsch | Simplified Chinese | Traditional Chinese | |
|---|---|---|---|---|---|---|
| MF10-P1/P2 | Download | Download | ||||
| MF10-P1/P2 | Correction | Download | Download | |||
| MF10-CM | Download | Download | ||||
| MG50-CL | Download | Download | ||||
| MG50-CL iQSS | Download | Download | ||||
| MG50-EC | Download | Download | ||||
| MT20 | Download | Download | ||||
*Please contact us if you cannot download the file.
Catalog
| MG50 Series | Japanese |  |
|---|---|---|
| MG50 Series | English | |
*Please contact us if you cannot download the file.
