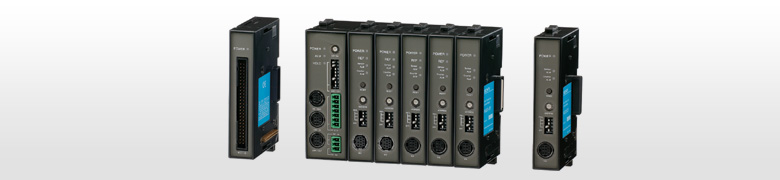

MG10A/20A/30Digital Gauge
- Features
- Specifications
- Dimensions
- Manual
- Catalog
Features
Flexible digital gauge system for multi-point measuring.
- Up to 64 connectable gauges
- Input resolutions : 0.1μm, 0.5μm, 1μm, 5μm, and 10μm.
- Compatible with RS-232C, BCD
- Operating voltage : 12-24VDC
- DIN rail mounting (35mm)
Specifications
| MG10A series Specifications | |||
|---|---|---|---|
|
*1 Total power of modules connected to MG10A should not be over 54W (12VDC Input) or 108 W (24VDC Input). | |||
| MG10A-P1 | MG10A-P2 | ||
| Power | Power supply Power supply voltage | DC12～24V(11～26.4V) Min. startup time: :100ms or less | |
| Power consumption | 2.0W +total power consumption for connected modules*1 | ||
| Imrush current(10ms ) | 10A or less(when maximum number of modules are connected) | ||
| Power supply reverse connection prevention | Fuse(5A fuse is built in.) | ||
| Communication | I/F input/ output circuit | RS‐ 232C(Conforms to EIA-232C) | |
| Baud rate setting | 2400/9600/19200/38400 bps(set with DIP switch) | ||
| Data length | 7/8bit(set with DIP switch) | ||
| Stop bit | 1/2bit(set with DIP switch) | ||
| Parity | None/ODD/EVEN(set with DIP switch) | ||
| Delimiter | CR/CR+LF(set with DIP switch) | ||
| Linkage function | Maximum number of linkages | max.16(total of counter modules 64) | |
| Maximum length of linking cable | max.10m | ||
| I/O | |||
| Input format | source input(+COM) | sink input(-COM) | |
| Photo coupler insulation DC 5～24V | |||
| Output format | sink type(-COM) | source type(+COM ) | |
| Photo coupler insulation DC 5～24V | |||
| Input signal | reset, pause, start, latching, and data out trigger to whole channels | ||
| Output signal | integrated alarm | ||
| Connectable modules | Counter modules | MG20A-DK, MG20A-DG, MG20A-DT (available for mixed use, up to 16 modules)*1 | |
| Interface modules | MG30‐ B1, MG30‐B2*1 | ||
| Accessory | LZ61: Link cable (1m) | ||
| MG20A series Specifications | ||||
|---|---|---|---|---|
|
*2 Set the resolution value of the connected gauge. *3 MG20A-DG work only connect to DL**BR series | ||||
| Model | MG20A-DK | MG20A-DG | MG20A-DT | |
| Power consumption | 0.8W+total power consumption for connected measuring units | 1.4W(when connected DG-B series) 0.5W(when connected DL-B series) |
1.2W | |
| Measuring unit input | Connectable measuring units | DK series(A/B quadrature input) | DG**B series, DL**B/DL**BR series | DT series |
| Allowable resolution setting*2 | 10/5/1/0.5/0.1μm | 10/5/0.5μm | 5μm(DT12/32) 1μm(DT512) | |
| set with DIP switch | ||||
| Maximum response speed | Subject to the specification of the connected gauge | 1.6m/s | ||
| Reference point*3 | REF-LED (reference point loaded) shows on the display after the reference point is detected. Set "0" or preset value on the counter when the reference point is detected. | - | ||
| Others | Alarm | S-ALM LED activates by excess speed / acceleration of measuring unit. C-ALM LED activates by excess speed of the internal circuit of counter. | ||
| Alarm display is cancelled by reset command from MG10A or with the reset button of main unit. | ||||
| MG30 series Specifications | ||||
|---|---|---|---|---|
| Model | MG30-B1 | MG30-B2 | ||
| Power consumption | 1W | |||
| I/O | Input format | source input(+COM) | sink input(-COM) | |
| Photo coupler insulation DC 5～24V | ||||
| Output format | sink type(-COM) | source type(+COM) | ||
| Photo coupler insulation DC 5～24V | ||||
| Input signal | DRQ, channel address, measuring mode shifting, comparator shifting, reset, start/latch, posing, reference point loaded | |||
| Output signal | BCD data (6 digits), READY, code, GO/NO GO output, alarm, reference point loaded | |||
| Output setting | timer (1~128ms)/OUT/OR, polarity (set with internal DIP switch) | |||
| MGseries specifications | ||||
|---|---|---|---|---|
|
Magnescale reserves the right to change product specifications without prior notice. | ||||
| Operating temperature/humidity | 0～+50℃(non condensing) | |||
| Storage temperature/humidity | -10～+60℃(20～90%RH) | |||
Manual
| Product name | Japanese | English | Deutsch | Simplified Chinese | Traditional Chinese | |
|---|---|---|---|---|---|---|
| MG10A | Download | Download | Download | |||
| MG10A | Supplement | Download | Download | Download | ||
| MG20A | Download | Download | Download | |||
| MG30 | Download | Download | Download | Download | ||
| MG30 | Supplement | Download | Download | Download | ||
| MG30 | Correction | Download | Download | Download | ||
*Please contact us if you cannot download the file.
Catalog
| MG10A/20A/30 Series | Japanese | - |
|---|---|---|
| MG10A/20A/30 Series | English |  |
*Please contact us if you cannot download the file.
