DL330BDigital Gauge

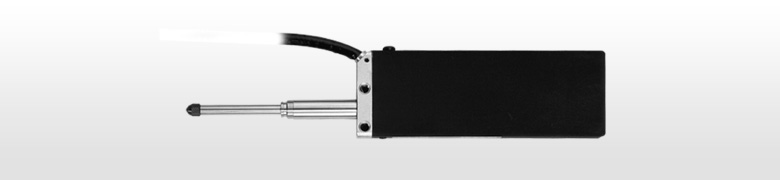

DL330B Digital Gauge
  • Features
  • Specifications
  • Dimensions
  • Manual
  • Catalog


Slim, compact gauges

  • Magnetic principle
  • Resistant to dust and vibrations.
  • Compact size ideal for designing into machines.
  • A/B phase output by open collector
  • Measuring range: 30 mm / 1.18"



*1 Max. response speed of the electrical circuit.
*2 The mass indicated is the total mass excluding the cable.
*3 Please consult our sales for more than 2m.
※ Please consult our sales about impact resistance and vibration resistance.

Magnescale reserves the right to change product specifications without prior notice.

Measuring range30mm
Maximum resolution10μm
Accuracy(at 20℃)10μm
Measuring force(at 20℃)1.5Nor less
Output signalA/B phase by NPN open collector (12 VDC, 10 mA or less)
Maximum response speed*1120m/min
Operating temperature0~50℃
Storage temperature-10~60℃
Protective design grade-
Cable length2m*3
Power supplyDC5V±5%
Power consumption0.2W
Mass*2Approx. 90g
FeelerFeeler tipped with φ 3 mm/ 0.12" dia. Carbide ball with M2.5 x 0.45 screw on fitting end (DZ-123)
Vacuum pressure for Air lifter-
