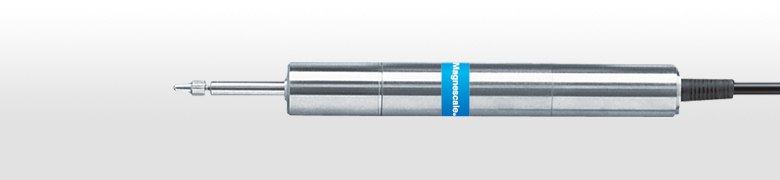

DK25Digital Gauge
- Features
- Specifications
- Dimensions
- Manual
- Catalog
Features
High accuracy, rugged gauges. Suitable for installation on machine
- Measuring range : 25 mm / 0.98"
- Accuracy : 2 μm
- Maximum resolution : 0.5 μm
- Excellent resistance to workshop conditions.
- High measuring force (25PR5/25PLR5)
- Low measuring force (25NR5/25NLR)
- A variety of accessories available
- Direct connected to A/B quadrature counter
Specifications
| Specifications | |||||
|---|---|---|---|---|---|
|
*1 The resolution setting needs to be made when connecting to the LT30 series, MG series, and LY70 series. For details, please refer to the respective instruction manual. *2 The mass indicated is the total mass excluding the cable and interpolation box. Magnescale reserves the right to change product specifications without prior notice. | |||||
| Model | DK25NR5 | DK25PR5 | DK25NLR5 | DK25PLR5 | |
| Output | A/B/Z phase voltage-differential line driver output(compliant with EIA-422) | ||||
| Maximum resolution*1 | 0.5 μm | ||||
| Measuring range | 25mm | ||||
| Accuracy (at 20℃) | 2 μm | ||||
| Measuring force(at 20℃) | Upward | 0.4 ±0.3 N | 4.9 Nor less | 0.4 ±0.3 N | 4.9 Nor less |
| Lateral | 0.7 ±0.35 N | 4.9 Nor less | 0.7 ±0.35 N | 4.9 Nor less | |
| Downward | 1 ±0.4 N | 4.9 Nor less | 1 ±0.4 N | 4.9 Nor less | |
| Reference point | One location (at 1 mm/0.04" position of spindle movement) | ||||
| Maximum response speed | 250 m/min | ||||
| Vibration resistance(10 ～ 2000 Hz) | 150 m/s2 | ||||
| Impact resistance (11 ms) | 1500 m/s2 | ||||
| Protective design grade | IP50 | IP64 | IP50 | IP64 | |
| Operating temperature | 0°C ～ 50°C | ||||
| Storage temperature | −20°C ～ 60°C | ||||
| Power supply Power supply voltage | DC +5 V ±5% | ||||
| Power consumption | 1 Wor less | ||||
| Cable length | Approx. 2.5 m | ||||
| Diameter of stem | φ20(0～-0.013)mm | ||||
| Mass*2 | Approx. 300 g | ||||
| Feeler | Feeler φ2.5 mm carbide ball with M2.5p x 0.45 screw on fitting end (DZ-122) | ||||
| Output Cable length(up to the electronic section) | 22 m max. | ||||
| Accessories | +P M4x5 screw (2 pcs.), Instruction Manual | ||||
