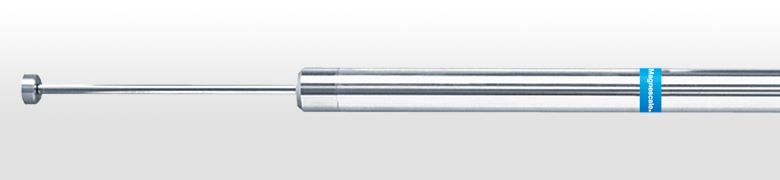

DK205Digital Gauge
- Features
- Specifications
- Dimensions
- Manual
- Catalog
Features
High accuracy, rugged gauges. Suitable for installation on machine.
- Measuring range : 205 mm / 8.07"
- Accuracy : 6 μm (DK205PR5)
- Maximum resolution : 0.5 μm Excellent resistance to workshop conditions.
- Magnet feeler (205BP)
- Direct connected to A/B quadrature counter
Specifications
| Specifications | ||
|---|---|---|
|
*1 The resolution setting needs to be made when connecting to the LT30 series, MG series, and LY70 series. For details, please refer to the respective instruction manual. *2 The mass indicated is the total mass excluding the cable and interpolation box. *3 The spindle weights about 400g. Magnescale reserves the right to change product specifications without prior notice. | ||
| Model | DK205 | |
| Output | A/B/Z phase voltage-differential line driver output(compliant with EIA-422) | |
| Maximum resolution*1 | 0.5 μm | |
| Measuring range | 205 mm | |
| Accuracy (at 20℃) | 6 μm | |
| Reference point | One location (at 5 mm position of spindle movement) | |
| Maximum response speed | 250 m/min | |
| Vibration resistance(10 ～ 2000 Hz) | 150 m/s2 | |
| Impact resistance (11 ms) | 1500 m/s2 | |
| Protective design grade | IP64 | |
| Operating temperature | 0°C ～ 50°C | |
| Storage temperature | −20°C ～ 60°C | |
| Power supply Power supply voltage | DC +5 V ±5% | |
| Power consumption | 1 Wor less | |
| Cable length | Approx. 2.5 m | |
| Diameter of stem | φ32(0～0.05)mm | |
| Mass*2 | Approx. 1300 g | |
| Feeler mounting base | Magnetic substance | |
| Magnetically attachable feeler | Magnetic attraction : 10 N, resistance against horizontal slip : 2.7 N Provided with φ4 mm carbide ball tip | |
| Spindle*3 | Spindle φ8 mm, radial swing : max.0.04 mm | |
| Output Cable length(up to the electronic section) | 22 m max. | |
| Accessories | +P M4x5 screw (2 pcs.), Instruction Manual | |
Manual
| Product name | Japanese | English | Deutsch | Simplified Chinese | Traditional Chinese |
|---|---|---|---|---|---|
| DK205 | Download | Download | Download | Download |
*Please contact us if you cannot download the file.
Catalog
| DK205 Series | Japanese |  |
|---|---|---|
| DK205 Series | English | |
*Please contact us if you cannot download the file.
