DK110Digital Gauge

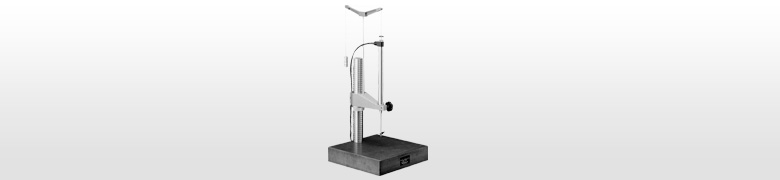

DK110 Digital Gauge
  • Features
  • Specifications
  • Dimensions
  • Manual
  • Catalog


High accuracy gauge with controllable measuring force

  • Measuring range :110 mm / 4.33"
  • Accuracy: 4 μm
  • Maximum resolution: 0.5 μm
  • Direct connected to A/B quadrature counter
  • Reduced measurement error
  • Precision dual spindle support allows for a smooth spindle motion and virtually error free measurements.
  • Reduced measuring force:The measuring force can be reduced to a minimum of 0.3 N in three selectable steps using the measuring balancer (option). The force is maintained constant regardless of spindle movement direction.
  • Soft spindle return. A braking mechanism reduces spindle return speed, therby eliminating the danger of damaging either the surface plate or the workpiece.



*1 The measuring force can be changed by mounting optional balancer DZ581 and changing weights.

*2 Excluding the interpolation box and connector

*3 Excluding cable section and interpolation box

Magnescale reserves the right to change product specifications without prior notice.

Measuring range110 mm
Accuracy (at 20℃/68°F)4 μm
Measuring force (at 20℃/68°F)*1Downward: 1.55±0.15 N (Spindle weight)
Maximum response speed250 m/min
Reference pointPosition at spindle movement of 5 mm
Reference-point response speedSame as the noted maximum response speed
OutputA/B/reference point Voltage-differential line driver output (conforming to EIA-422)
Protection grade*2IP50
Vibration resistance10 to 2000 Hz 150 m/s2
Impact resistance1500 m/s2 11 ms
Operating temperature0 to 50℃
Storage temperature−20 to 60℃
Power supply5 VDC±5 %
Power consumption1 W
Mass*3Approx. 800 g
Output cable length2.4 m
FeelerCarbide ball tip, Mounting screw M2.5
AccessoriesInstruction Manual, +P M4 × 5 screw (2pc), Lift lever DZ-161
