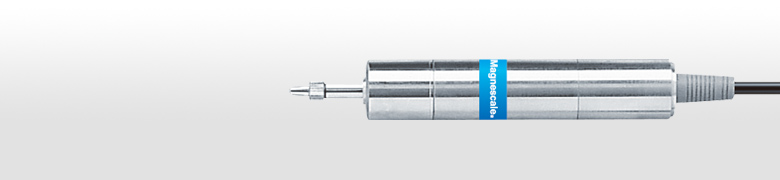

DK10Digital Gauge
- Features
- Specifications
- Dimensions
- Manual
- Catalog
Features
High accuracy, rugged gauges. Suitable for installation on machine
- Measuring range : 10 mm / 0.39"
- Accuracy : 2 μm
- Resolution : 0.5 μm
- Excellent resistance to workshop conditions.
- High measuring force (10PR5/10PLR5)
- Low measuring force (10NR5)
- A variety of accessories available
- Direct connected to A/B quadrature counter
Specifications
| Specifications | ||||
|---|---|---|---|---|
|
*1 The resolution setting needs to be made when connecting to the LT30 series, MG series, and LY70 series. For details, please refer to the respective instruction manual. *2 The mass indicated is the total mass excluding the cable and interpolation box. Magnescale reserves the right to change product specifications without prior notice. | ||||
| Model | DK10NR5 | DK10PR5 | DK10PLR5 | |
| Output | A/B/Z phase voltage-differential line driver output(compliant with EIA-422) | |||
| Maximum resolution*1 | 0.5 μm | |||
| Measuring range | 10mm | |||
| Accuracy (at 20℃) | 2 μm | |||
| Measuring force(at 20℃) | Upward | 0.3 ±0.25 N | 4.9 Nor less | |
| Lateral | 0.6 ±0.3 N | 4.9 Nor less | ||
| Downward | 0.8 ±0.35 N | 4.9 Nor less | ||
| Reference point | One location (at 1 mm/0.04" position of spindle movement) | |||
| Maximum response speed | 250 m/min | |||
| Vibration resistance(10 ～ 2000 Hz) | 150 m/s2 | |||
| Impact resistance (11 ms) | 1500 m/s2 | |||
| Protective design grade | IP50 | IP64 | ||
| Operating temperature | 0°C ～ 50°C | |||
| Storage temperature | −20°C ～ 60°C | |||
| Power supply Power supply voltage | DC +5 V ±5% | |||
| Power consumption | 1 Wor less | |||
| Cable length | Approx. 2.5 m | |||
| Diameter of stem | φ20(0～-0.013)mm | |||
| Mass*2 | Approx. 230 g | |||
| Feeler | Feeler φ2.5 mm carbide ball with M2.5p x 0.45 screw on fitting end (DZ-122) | |||
| Output Cable length(up to the electronic section) | 22 m max. | |||
| Accessories | +P M4x5 screw (2 pcs.), Instruction Manual | |||
Manual
| Product name | Japanese | English | Deutsch | Simplified Chinese | Traditional Chinese |
|---|---|---|---|---|---|
| DK10 | Download | Download | Download | Download |
*Please contact us if you cannot download the file.
Catalog
| DK10 Series | Japanese |  |
|---|---|---|
| DK10 Series | English | |
*Please contact us if you cannot download the file.
