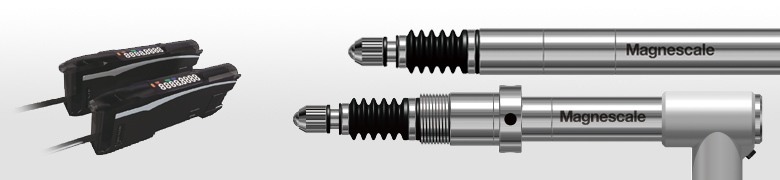

DF805S/MF10Digital Gauge

Features
Specifications
Dimensions
Manual
Catalog

DF805S Features

Slim, compact, and having a high resolution of 0.1 μm maximum The maximum response speed has also further advanced.

Measuring range: 5mm
Accuracy: 1 μm p-p
Maximum resolution: 0.1 μm
Maximum response speed: 80 m/min
Built-in reference point
Excellent resistance to water and oil
Adopts a flexing-resistance cable
Achieved numbers of strokes: 270 million (As of May 2019, the gauges have reached 270 million strokes in an on going evaluation.)

MF10 Features

Simple settings make operating easy. Threshold can be set by two clicks.

Input/output circuit: NPN output(Current sink) / PNP output(Current source)
Number of Go/NoGo judgment outputs: 2
External input: 1
Minimum display unit: 0.1μm
Power supply voltage: 10 to 30VDC, including ripple(p-p) 10%
Protection circuit: Power supply reverse polarity protection, output short-circuit protection, and output incorrect connection protection
Number of banks: 4

Specifications

DF805S series Specifications
Magnescale reserves the right to change product specifications without prior notice.
Model	DF805SR、DF805SFR	DF805SLR、DF805SFLR
Measuring range	5mm
Resolution	0.1μm
Accuracy(at 20°C/68°F)	1μm p-p
Measuring force(at 20°C/68°F)	Upward：0.35±0.25N
	Horizontal：0.40±0.25N
	Downward：0.45±0.25N
Maximum response speed	80m/min
Reference point	at 1±0.5 mm position of spindle movement
Reference point response speed	80m/min
Output	Dedicated serial communication protocol
Spindle driving	Spring push
Achieved number of strokes	270 million strokes (As of May 2019, the gauges have reached 270 million strokes in an on going evaluation.)
Protective structure	IP67	IP64 When a ø4 mm tube is connected : IP67
Impact resistance	100m/s²(20～2,000Hz)
Vibration resistance	1,000m/s²(11ms)
Operating temperature	0～+50℃
Storage temperature	-20～+60℃
Power supply voltage	+10 to +30V DC
Power consumption	1.2 W or less
Mass	Approx. 30 g (not including cable parts and interpolation box)
Probe part cable length	2m
Output cable length	Max. 20 m (Use the optional CE34.)
Feeler	Provided with a carbide ball tip Mount screw M2.5
Accessories	Instruction Manual, 1 wrench, 1 hose elbow (only DF8*SL) Tightening nut, clamp wrench, wave washer, stop pin (1 each) (only DF8SF*)

MF10 series Specifications
Model		MF10-P1	MF10-P2
Type	I/O circuit	NPN output (current sink)	PNP output (current source)
I/O	Number of Go/NoGo judgment outputs	2
I/O	Number of external inputs	1
Minimum display unit		0.1μm
Power supply voltage		+10 to +30V DC including ripple (p-p) 10%
Power consumption*1		Power supply voltage 24 V normal mode: 2040 mW or less (Power consumption 85 mA or less) Power-saving ECO mode: 1920 mW or less(Current consumption 80 mA or less)
Go/NoGo judgment output*2		Load voltage: DC 30 V or less, open collector output type Load current: the total of the two outputs must be 100 mA or less Residual voltage and load current less than 10 mA: 1 V or less Load current 10 mA to 100 mA: 2 V or less Off-state current: 0.1 mA or less
Protection circuit		Power supply reverse connection protection, output short-circuit protection and output reverse connection protection
Number of banks		4 (Can be set 4 kinds of judgment value)
Ambient temperature range*3		Operating: When lining up 1 or 2 digital tolerance indicators: 0°C to +55°C Storage: -10°C to +60°C (with no icing or condensation)
Ambient humidity range		Operating and storage: 35% to 85% RH (with no condensation)
Mass (main unit)		Approx. 75 g
Cable length		2m
1. At a power supply voltage of 10 to 30 V, Normal mode: 2250 mW or less (power supply voltage 30 V: power consumption 75 mA or less / power supply voltage 10 V: power consumption 155 mA or less), power-saving ECO mode: 2100 mW or less (power supply voltage 30 V: power consumption 70 mA or less / power supply voltage 10 V: power consumption 135 mA or less) 2. When lining up 4 or more digital tolerance indicators, the 2 output total is 20 mA or less. *3 When used in a row, the operating ambient temperature range is 0°C to +50°C for 3 to 10 units, 0°C to +45°C for 11 to 16 units, and 0°C to +40°C for 17 to 30 units. Magnescale reserves the right to change product specifications without prior notice.
