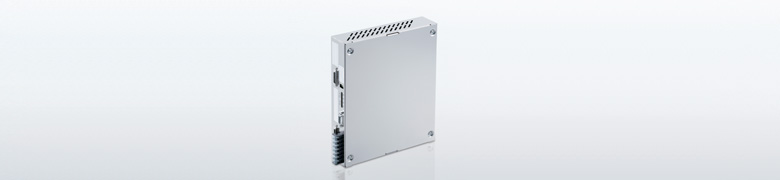

BD96Laserscale
- Features
- Specifications
- Dimensions
- Manual
- Catalog
Features
Minimum resolution of 17pm when combined with the BS series. Supporting various serial and binary outputs.
- Minimum resolution :
0.4nm (When connected with BL series)
31pm (When connected with BH series)
17pm (When connected with BS series) - High response speed :
1,100mm/s (When connected with BL series)
700mm/s (When connected with BH series)
400mm/s (When connected with BS series) - Various serial or binary outputs
- Includes automatic signal compensation
- A/B quadrature output (standard : 4 divisions) (binary output axis 1 or 2 type)
BS series : 34.5nm, BH series : 62.5nm, BL series : 100nm - Max. divisions : 8000 (When connected with BS and BH series) (special model)
- *Please inquire about various specifications, such as the number of divisions.
Specifications
| Specifications | ||
|---|---|---|
| Model | BD96 | |
| Resolution | 17pm (When connected with BS series), 31.25pm (When connected with BH series), 0.4nm (When connected with BL series) | |
| Max. response speed | 400mm/s (When connected with BS series), 700mm/s (When connected with BH series), 1,100mm/s (When connected with BL series) | |
| Max. divisions | 025 : 256, 051 : 512, 040 : 400, 050 : 500, 100 : 1000, 200 : 2000, 400 : 4000 (special model 800: 8000 divisions) | |
| Alarm | When exceeding the max. response speed or when the laser signal level is too low (disconnection ); LED lights up | |
| Input signal compensation | DC offset, amplitude, phase | |
| Power supply | DC +5V±5% DC +12V±5% DC -12V±5% | |
| Power consumption (When connected with scale) |
DC +5V : 0.4A DC +12V : 0.4A DC -12V : 0.2A ( 1 axes type ) DC +5V : 0.4A DC +12V : 0.7A DC -12V : 0.5A ( 2 axes type ) |
|
| Operating temperature | 0 to +40˚C | |
| Storage temperature | -10 to +50˚C | |
| Dimensions | 236 (W) x 215.2 (D) x 48 (H)mm | |
| Mass | Approx. 1.6kg | |
|
Magnescale reserves the right to change product specifications without prior notice. |
Catalog
| BD96 Series | Japanese |  |
|---|---|---|
| BD96 Series | English | |
*Please contact us if you cannot download the file.
