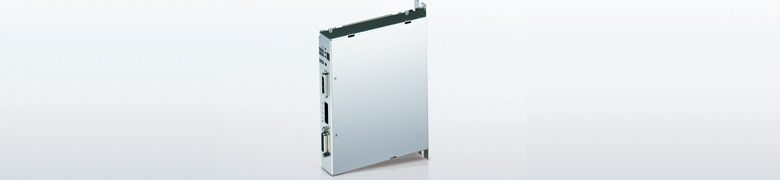

BD95 Laserscale
  • Features
  • Specifications
  • Dimensions
  • Manual
  • Catalog


Interpolator with A/B quadrature output that achieves resolution from 4.3nm to 34.5nm.

  • High resolution: 4.3 to 34.5nm (depends on the number of divisions)
  • High response speed: 400mm/s
  • DC offset, gain, phase automatic conditioning
  • 32 bit binary output by data request input (T14, T16, T17)


Resolution34.5 nm (4 divisions) or
17.2nm (8 divisions)
100 nm or 50 nm during pitch compensation
17.2 nm (8 divisions) or
8.6 nm(16 divisions)
100 nm, 50 nm, or 10 nm during pitch compensation
8.6 nm (16 divisions) or
4.3 nm (32 divisions)
100 nm, 50nm, 10 nm or 5 nm during pitch compensation
Max. response speed400 mm/s (with 4 divisions)
275 mm/s (with 8 divisions)
275 mm/s (with 8 divisions)
120 mm/s (with 16 divisions)
120 mm/s (with 16 divisions)
60 mm/s (with 32 divisions)
Output signalA/B quadrature 1 with / without pitch compensation (compliant with EIA-422)
A/B quadrature 2 without pitch compensation (compliant with EIA-422)
Reference point (compliant with EIA-422)
Alarm (compliant with EIA-422) (Switching between automatic reset and holding is possible)
Laserscale signal (SIN/COS)
32-bit binary data (-T14, -T16, -T17 only)
AlarmWhen exceeding the max. response speed or when the laser signal level is too low (disconnection ); LED lights up
Pitch compensation functionA/B quadrature 1 only A round-off error of 1 resolution occurs.
Power supplyDC + 24V±1V
Power consumption
(when connected with scale)
400mA (maximum)
Operating temperature 0 to 50˚C
Storage temperature -10 to 60˚C
Dimensions172 (W)x144(D)x32(H) mm
MassApprox. 0.8 kg

Magnescale reserves the right to change product specifications without prior notice.
