AC20 Monitoring SystemMagnescale
- Features
- Specifications
- Manual
- Software
Feature

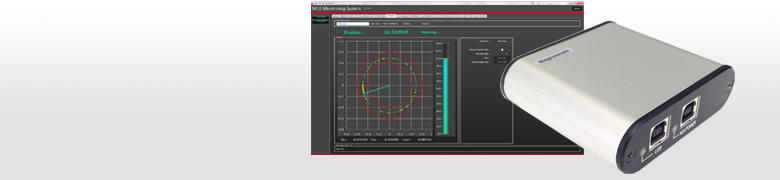

The AC20 is a monitoring tool used to perform Magnescale failure analysis and to check Magnescale operation. Monitors Lissajous signal with the software (MGS Monitoring System). Monitors scale condition without power supply from equipment.
- Enables maintenance of equipment in which scale is installed.
- Enables mounting and adjustment of scale on machine while monitoring Lissajous signal.
Specifications
| Specifications | |||
|---|---|---|---|
| Model name | AC20-B100 | ||
| Connection with the computer | USB 2.0 Full Speed (12 Mbps) | ||
| Power consumption | 0.4W max(AC20-B100 standalone) | ||
| Input voltage range | DC5V ±0.25V (USB Bus power standard) | ||
| Operating temperature | 0℃ to 40℃ (No condensation) | ||
| Storage temperature | -10℃ to 60℃ (No condensation) | ||
| Mass | 150 g | ||
| Dimensions | 82(W) x 75(D) x 24(H)mm | ||
| Compatible scales (Manufactured by Magnescale Co., Ltd.) | ||
|---|---|---|
* : Special cable is required. Contact our sales representative. Magnescale reserves the right to change product specifications without prior notice. | ||
| SR27A series / SR67A series / SR77 series ＊ / SR87 series ＊ / RU97 series / RU77 series ＊ / RS87 series / RS97 series / SQ47, 57 series |
| Operating environment | |||
|---|---|---|---|
*1 : It must satisfy the required specification of OS | |||
| CPU | Intel Core i3 or higher is recommended *1 | ||
| RAM | 1 GB or higher is recommended *1 | ||
| OS | Windows 7 (32bit/64bit) / Windows 10 (32bit/64bit) | ||
| Display | 1080 x 800 pixels or higher is recommended *1 | ||
| USB | 2.0 *2 | ||
Manual ‹The latest version download›
| Product name | Japanese | English | Version |
|---|---|---|---|
| AC20 | Download | Download | Ver.01.02.04 |
Manual ‹The previous version download›
| Product name | Japanese | English | Version |
|---|---|---|---|
| AC20 | Download | Download | Ver.01.01.00 |
| AC20 | Download | Download | Ver.01.00.00 |
*Please contact us if you cannot download the file.
Software ‹The latest version download›
| Product name | Language | Software | Version |
|---|---|---|---|
| AC20 Monitoring System | Japanese | Download | Ver.01.03.00 |
| AC20 Monitoring System | English | Download | Ver.01.03.00 |
Software ‹The previous version download›
| Product name | Language | Software | Version |
|---|---|---|---|
| AC20 Monitoring System | Japanese | Download | Ver.01.02.04 |
| AC20 Monitoring System | English | Download | Ver.01.02.04 |
| AC20 Monitoring System | Japanese | Download | Ver.01.02.03 |
| AC20 Monitoring System | English | Download | Ver.01.02.03 |
| AC20 Monitoring System | Japanese | Download | Ver.01.02.00 |
| AC20 Monitoring System | English | Download | Ver.01.02.00 |
| AC20 Monitoring System | Japanese | Download | Ver.01.01.00 |
| AC20 Monitoring System | English | Download | Ver.01.01.00 |
| AC20 Monitoring System | Japanese | Download | Ver.01.00.00 |
| AC20 Monitoring System | English | Download | Ver.01.00.00 |
*Please enter the ID and password found on Safety Precautions.
